Products
TRANSFORMERS
Special Transformers
Rated power up to 50 MVA, rated voltage up to 72 kV, for rectifier, traction, induction oven application and for motors starting.
*Extreme installation at: offshore, windmill, crane and in extremely polluted ambient.
Low Voltage Dry Cast Resin
- Three-phase transformers up to 500KVA and voltage up to 6 kV
- Three-phase auto transformers up to 2000KVA.
- Single Phase and Three Phase Isolating Transformers.
- Single Phase Swimming Pool & Medical Equipment Transformers.
Oil Filled
| power: | up to 100MVA |
| voltage: | up to 230 kV |
| frequency: | Hz 50-60 |
| standards: | IEC 60076-13- IEEE 57.12.01 |
MV Dry type Cast Resin
| power: | up to 20MVA |
| voltage: | up to 36 kV |
| frequency: | Hz 50-60 |
| standards: | IEC 60076-13- IEEE 57.12.01 |
LV Distribution Transformers
Production range: rated power up to 2000 kVA, rated voltage up to 1 kV.
EXPLOSION PROOF ELECTRICAL EQUIPMENT
Explosion Proof Electrical Equipment
The products are built in accordance to the Normative European (CEI 31-8 CENELEC EN 50014,CEI 31-1 CENELEC EN 50018, CEI 31-7 CENELEC EN 50019, CEI 31-9 CENELEC EN 50020) and conform to ATEX 94/9/EC, they are used in places where the presence of gas or inflammable dusts can create highly explosive atmospheres like: gas, methane, hydrocarbons, solvents, paints and resins, alcohol, fragrances and perfumes, distillates, plastic materials and rubbers etc. Dusts created during the manufacture of: agricultural products, metals, chemical products, wood …. Etc.
SYSTEM FOR MARINE / EXPLORATION EQUIPMENT
Systems for Marine/Exploration
(interlocked socket- outlets, lighting fixtures, sirens and bells for alarm and signaling, etc..)The electrical and lighting equipment has been designed to meet the specific requirement on electric systems on board, cargo ships, navy ships, port area ferries, oil rigs and saline plants, heavy mining and chemical industries, etc… All equipments conform to the standards they are specified with, i.e., for socket-outlets and watertight devices which conforms to UNAV specifications and all safety standard; lighting fixtures in compliance with IEC EN Standards.
POWER PROTECTION SYSTEM
Industrial/Non-Industrial Uninterruptible Power System (UPS)
- Rated Capacity from 250VA up to 4.8MVA
- State-of the-art-technology and features
- IGBT Power technology
- Software available for remote monitoring & supervision and teleservice.
- Marine & Offshore
- Oil & Gas Refinery / Petrochemical
- Utilities & Power Plant
- Computer Data Centre
- Manufacturing Factory
- Transportation
- Telecommunications
- Control & Automation
Power Conditioner / Stabilizer
Covers the up to 2500KVA and allows for the choice of several input voltage variations within a broader range from +30% to -45%
The wider use of equipment with non linear absorption such as rectifiers, speed variations, drives, switching power supplies, has caused, besides traditional and well known voltage fluctuations, the spreading of a new insidious type of electrical fault: harmonic distortion. This fault deceives traditional stabilizing systems that in presence, read wrong input voltage values. As a consequence a voltage delivered with an efficient value that differs from the rated one, becoming greater as the harmonic distortion of the mains increases. Thus, the use of Power Conditioner/Stabiliser is highly recommended.
Innovative Technology’s Transient Voltage Surge Suppressor (TVSS)
The Innovative Technology’s Surge Suppressor focus is on your electrical distribution, telecommunications and data systems throughout your facility.
| Features & benefits : |
Advanced encapsulation technology, Active tracking Network, Threshold suppression network EMI/RFI Tracking Filter. |
| Applications : | High to low exposure level, sensitive/mission critical load including:MSB, Distribution panels, branch panels and critical local centers. |
| Peak Surge Current: | 40KA to 400KA |
| Voltage (A/C) : | 220/380, 230/400, 240/415, 277/480 |
| Voltage (D/C): | 48-200, 120-300VDC |
| Response Time: | < 1 nanosecond |
| Enclosure: | Powder coated steel, weatherproof, IP66 |
| Standard Complied: | ANSI/IEEE C62.41, UL 1449 second edition, UL 1283 filter |
| Warranty: | 5, 10 and 20 years |
AUTOMATION COMPONENTS
Digital Powermeter Analyzers
3-phase power analyzer with built in programming keypad. Particularly recommended for displaying the main electrical variable. Housing for panel mounting, (front) protection degree IP65, and optional RS485 serial port or dual pulse output. Parameters programmable by mean of CptBSoft.
Digital Powermeter Analyzers
Ulniversal utility meter and power analyzer which can be used in 3 different operating modes:
- direct measurements for the power quality analysis (LV or MV/HV connection);
- indirect energy and power measurements by means of watt-hours meters (LV or MV/HV connection)
- direc measurements for the instantaneous variables (LV connection) and indirect measurements for the energy variables (LV or MV/HV). It's possible to add the managementof gas and water metering to all of these working modes. Automatic transmission of SMS alarm messages. Remote read-out from GSM mobile phones of all the instantaneous variables, the last variablesavailable in the data logging and the energy meters.
Compact Power Transducer
3-phase compact power transducer. Particularly recommended for the measurements of the main electrical variables
Housing for DIN-rail mounting, protection degree IP20 as standard, and RS485 or RS232 serial port.
Parameters programmable by means of CptBSoft
Digital Panel Meter
µp-based digital panelmeter, 3 1/2 DGT LED indicator, for current, voltage, temperature, resistance, rate, frequency, speed and period measurements. Measuring ranges and functions easily programmable from the key-pad or from the PC by means of optional Udm-Soft software. UDM35 included storagemin-max functions and double level protection password.
Housing for panel mounting with front protection degree: IP67, NEMA12
Switching Power Supply
The switching power supply SPD series are specially designed to be used in all automation application where the installation is on a DIN rail and compact dimensions and performance are a must.
Other Electrical Equipment
Rectifier

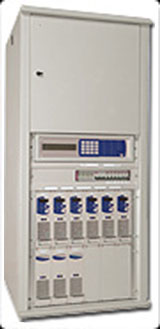

SYM Power System 2012 NET (PS 2012)
The PS 2012 power system provides clean DC power to sensitive equipment, and at the same time charges the battery bank and supplies backup power during mains failure.
The PS 2012 can house up to 64 hot-swap rectifiers, a sophisticated system controller and an LVD device.
Input voltages can be of one or three phases.
The system is constructed of 19" subracks, each can house up to three (three-phase) or six (single-phase) rectifiers.
Optional 23" subracks are also available (7 rectifiers).
The SC2012 NET system controller is a highly sohisticated device that can manage up to 64 rectifiers in parallel.
DC to DC and DC to AC Inverters modules can also be incorporated.
DC/AC INVERTERS
IP2000/1 Stand Alone Inverter Main Features Employs affective full bridge PWM technology
- Output isolation transformer
- Unique digital synchronization system for parallel connection
- Automatic emergency BYPASS increases unit reliability
- Micro-processor controlled
- LED display
- RS232 interface for remote PC communication
- Dry contact alarm
- Available in either standalone or parallel operation
- Redundant N+1 topology
- Protection against energy circulation between inverters
Co-axial Forced Air Cooling Fan
- Constructed by no. of parallel blades fixed on circular support and protected by aluminium cage.
- Supply Voltage : 230Vac, 50/60Hz, 1-phase
- Air Flow rate selection : from 440 ~ 3600m³/h
- IP 40 and Class B insulation
- Suitable for use up to 20MVA cast resin transformer in capacity.
Function :
- Ventilation of hot air trapped inside enclosure
- Power increased up to 40%.
Digital Temperature Monitoring Controllers
- 4-Channel monitoring – Electronic µP base unit
- cURus approval – File No. UL-E194027
- Universal voltage acceptable 24VDC to 250VAC
- Dry Contacts for Output – Alarm/Trip/Fault/Fan
PTC Temperature Sensor
- High grade blue silicon rubber insulation
- Protection : IP 68
- Pickup range from -50 ºC to 220ºC
- Accuracy : Class B
